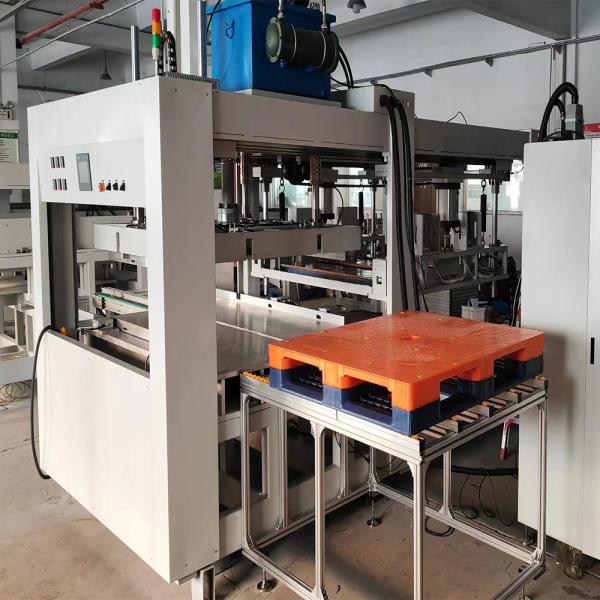

| | Pallet Hote Plate Machine |

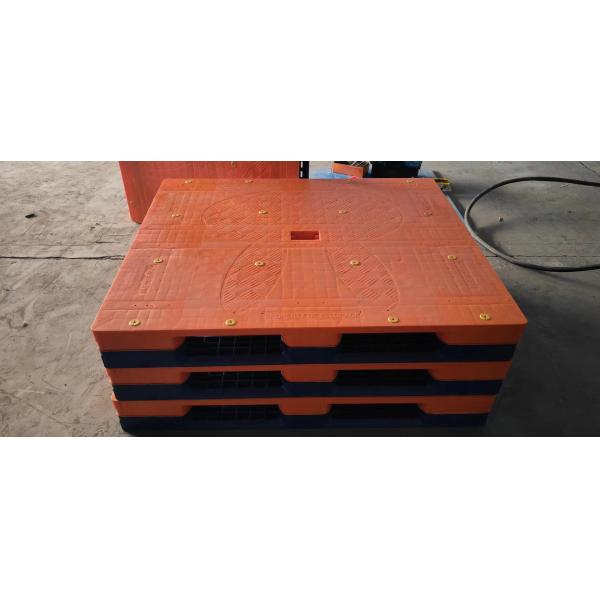

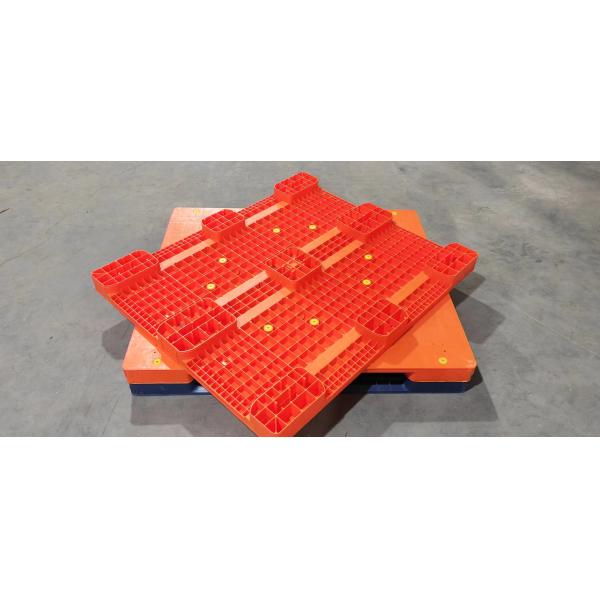

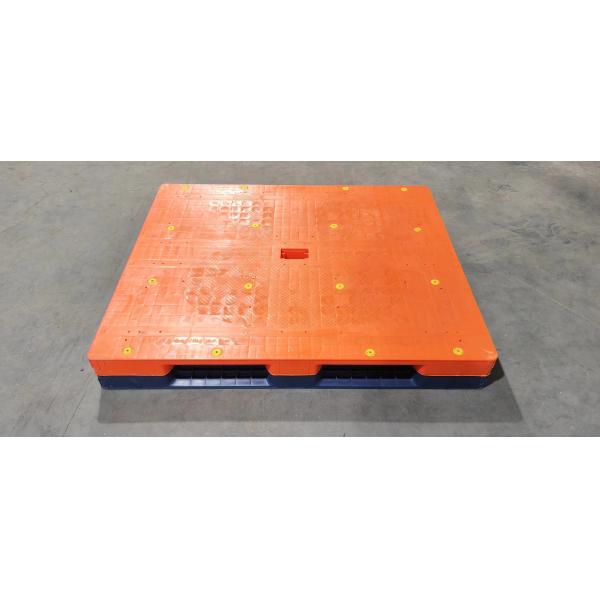

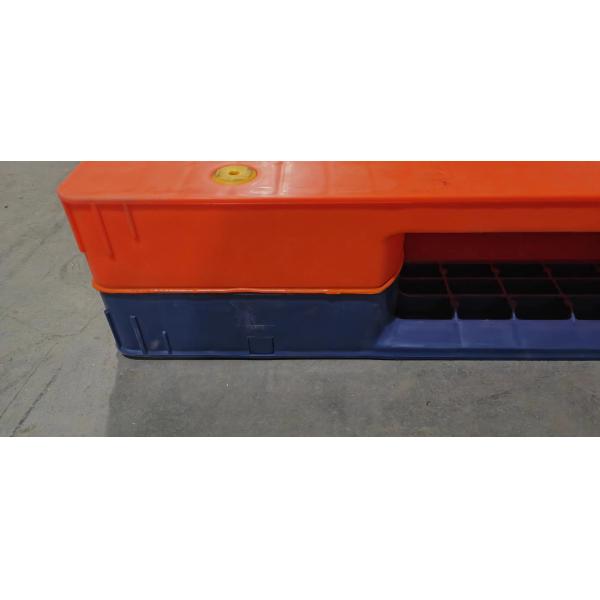

| | This equipment has been applied to the welding of pallets, and belongs to the special model of the industry. |
| | Horizontal hot plate welding machine, double hot plate welding, according to the product adopts horizontal welding.Similar products can be replaced by fixture. |
| | 10 sets of welding programs can be pre-stored, and the data interface can run in tandem with the production line. |
| | Japan MISUSI original heating device. Hot plate temperature control, with self-test, closed-loop control, multi-point independent temperature control, temperature control accuracy up to ±2 degrees. |
| | Equipped with man-machine interface and Chinese and English bilingual interface operation. |
| | Adopt SMC cylinder/RONGDA bearing. |
| | The machine was set up with sectional material and metal plate with beautiful appearance design, suitable for assembly line operation. |
| | Production cycle time 55S-65S. |
| | Safety: the machine is equipped with protective grating and scald warning safety baffle. |
| | Permission management: device setting administrator and operator permissions. |
| | The work table height is 900MM. |
| | The quipment starting mode: The equipment is started by pushing two starting buttons together with two hands. |
| Equipment capability/Quality traceability | The device has the protection function of misoperation(the machine will not work if the machine is not operated according to the standard operation procedures). |
| | Production records:The equipment can meet customer requirements for recording and storage of product capacity. |
| | Alarm failure and code recording:The equipment automatically displays the alarm fault code and records it automatically |
| | Man-machine interface - visual information of man-machine interface includes current operation steps, alarm information and solutions. |
| | IMS interactive function: support Ethernet communication. The equipment has the function of QR Code scanning and identification.
The data of hot plate temperature, displacement and time can be recorded and sent to the company's IMS system. (This function is customized according to customer requirements.) |
| | |
| Equipment Clamp/Quick die change | The equipment has the function of adjusting the size, which can be used in a certain range of sizes. |
| | The Clamp of the equipment is fixed by simple, fast and reliable fixing method such as locating pin, without special tools. |
| | The pneumatic part of the clamp and the sensor part of the device are designed with quick plug and pull. |
| | Quick die change time is 10-15 minutes. |
| | The equipment is equipped with sensor identification, and the type selected by PLC is different from the current fixture, which will alarm. |
| | Locking function - when the product is testing NG, the product is locked in the workstation (requires a designated person to unlock). |
| | Device alarm: fault information or corresponding fault code is displayed on the man-machine interface. |
| | Control system voltage DC24V. |
| | I/O- each station has a 10% I/O allowance for future expansion. |
| | Equipment demension(L)2000MM*(W)1400MM*(H)2100MM. |
| | Maximum allowable die size of equipment (L)950MM*(W)850MM*(H)250MM. |
| | Electric power requiement: 3 phases 380V 50Hz(If there are special requirements, customer confirmation is required.). |
| | The outlet pressure of the air compressor: 4Kg/cm2-6Kg/cm2(0.4MPA-0.6MPA). |
| | Adaptable to ambient temperature: -5ºC~40ºC |
| | Adaptalbe to humidity : 20%~80% |
| | The noise of the transmission part shall not exceed 70 db. |
| | Overall Power:20KW |
